CommScope Ultra II® 5NF4 Category 5e U/UTP filled Cable, outdoor direct burial, black jacket, 4 pair count, 1000 ft (305 m) length, reel
Construction Materials Conductor Material Bare copperInsulation Material PolyolefinJacket Material PE Dimensions Cable Length 305 m
1000 ftCable Weight 27.63 lb/kftDiameter Over Jacket 6.096 mm | 0.240 inJacket Thickness 0.762 mm | 0.030 in Electrical Specifications ANSI/TIA Category 5edc Resistance Unbalance, maximum 5 %dc Resistance, maximum 9.38 ohms/100 mDelay Skew 45 nsMutual Capacitance 4.6 nF/100 m @ 1 kHzNominal Velocity of Propagation (NVP) 65 %Operating Frequency, maximum 350 MHzTransmission Standards ANSI/TIA-568-C.2 |
CENELEC EN 50288-3-1 | ISO/IEC 11801 Class DSafety Voltage Rating 300 VDielectric Strength, minimum 1500 Vac | 2500 VdcNote All electrical transmission tests include swept frequency measurements | Delay has been derated by 5% due to the water proofing agents | The maximum permanent link length is reduced from 295 feet to 280 feet as a result of the delay rerating Environmental Specifications Environmental Space UV resistant for outdoor and/or direct burial installationsInstallation Temperature 0 °C to +60 °C (+32 °F to +140 °F)Operating Temperature -20 °C to +60 °C (-4 °F to +140 °F) General Specifications Brand Ultra II® |
Uniprise®Cable Component Type HorizontalCable Type U/UTP (unshielded)Pairs, quantity 4Jacket Color BlackConductor Gauge, singles 24 AWG Conductor Type, singles SolidConductors, quantity 8Packaging Type ReelProduct Number 5NF4 Mechanical Specifications Pulling Tension, maximum 11 kg | 25 lb
Compare at 275.00usd
Save-UA-Lot price = 260.00usd per 1000ft
Available: 1
Condition: Product is New

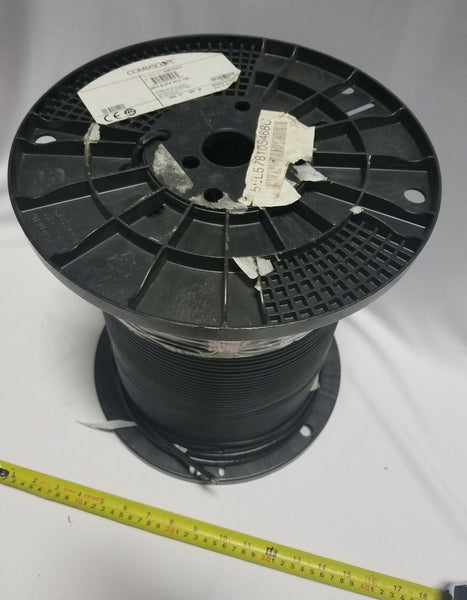

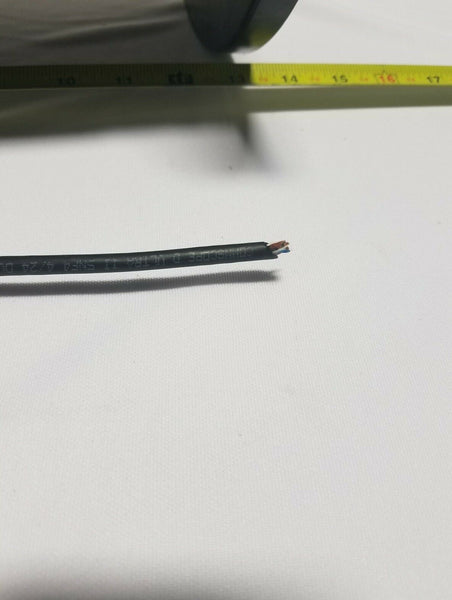

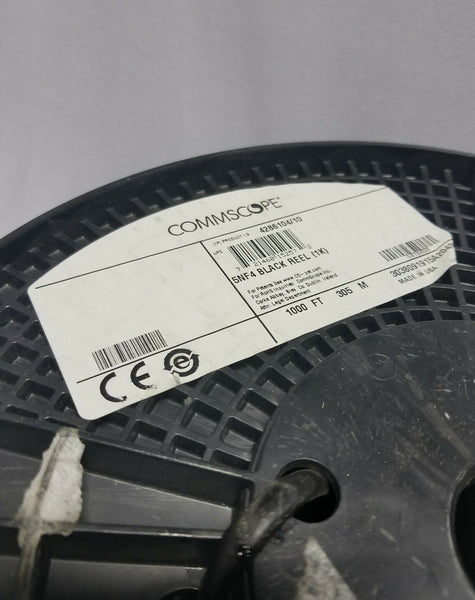

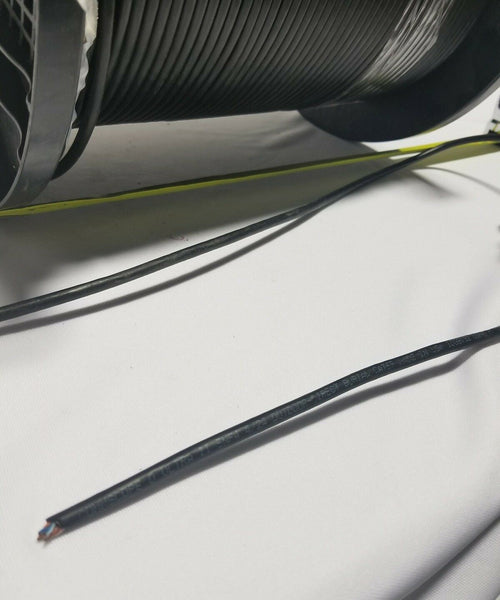

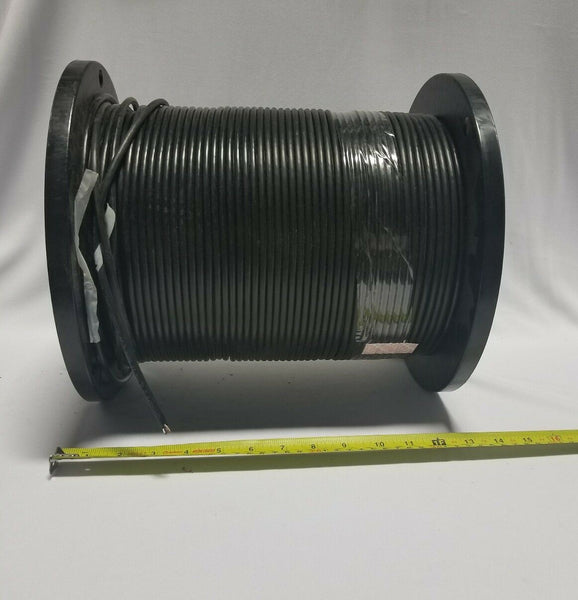

Please see pics for product and label details
-----------------------------------------------
-Shipping
Most items are shipped from the US or Canada same or next day or within 2 business days.
- Guarantee
14 day money back guarantee
- Feedback
Please note, your positive feedback is very important to us. We leave all positive feedback for all buyers once items are acknoledged as recieved and transaction is deemed completed.
-----------------------------------------------
Thanks for stopping by, your business is greatly appreciated :)
Please be sure to check out our other items for more quality items at awsome prices great.
Save-UA-Lot
